本公司銷售的德律設備均為二手設備，成色好，性能穩(wěn)定。服務工程人員均在原廠有5年以上工作經驗，出貨前，我們會整體檢測，demo1-2個工作日再發(fā)貨。
出租設備，服務保養(yǎng)，升級保固，均為我司工程人員處理；
出售設備整機保固3個月，部分重要部件保固1年，若出保，我司配件備貨充足，可提供緊急維修。
買機/租機熱線：13776054406（手機/微信號）賈先生
特性：
? 多角度2D+3D覆蓋率
? 四向數位條紋光投影
? 四個低角度相機
? 3D高度檢測范圍可高達40 mm
? 高速CoaXPress取像
? 可選配3D雷射模組
規(guī)格：
Optical System
| Imaging Method | Stop-and-Go Imaging |
| Top Camera | 12 Mpix |
| Angle Camera | 6.5 Mpix |
| Imaging Resolution | 10 μm, 15 μm (factory setting) |
| Lighting | Multi-phase true color LED, Coaxial lighting |
| 3D Technology | Quad Digital Fringe Projectors |
| Max. 3D Range | 0-40 mm |
Inspection Performance
| Imaging Speed |
12 Mpix@ 10 μm: 13.5 cm2/sec 12 Mpix@ 10 μm: 23 cm2/sec with optional CoaXPress 12 Mpix@ 15 μm: 30 cm2/sec 12 Mpix@ 15 μm: 40 cm2/sec with optional CoaXPress Note: The inspection time will vary depending on the configuration |

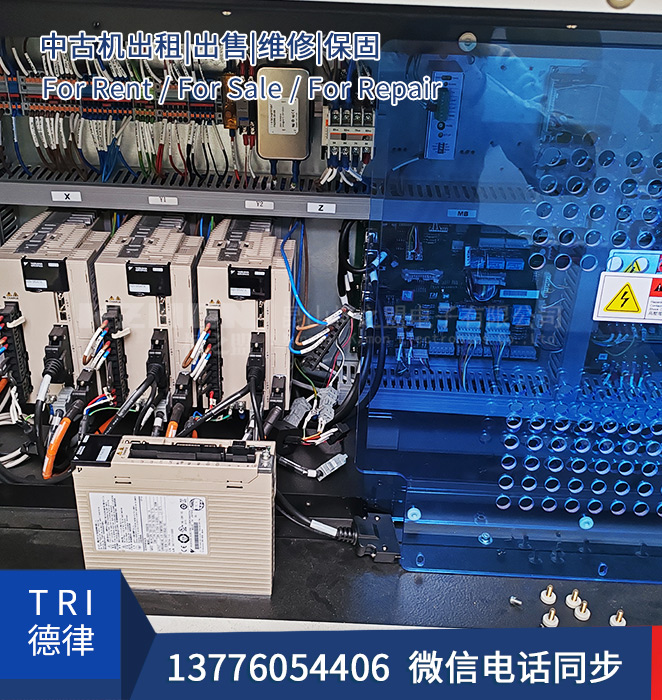

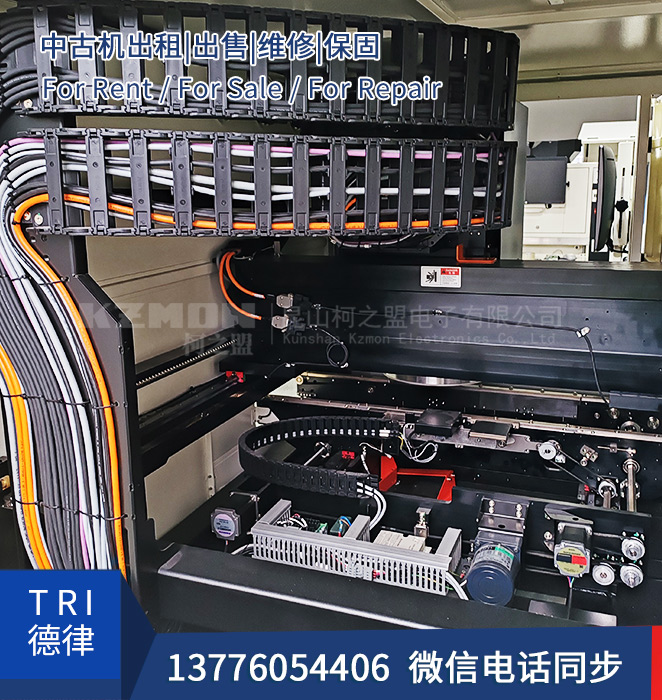

Motion Table & Control
| X-Axis Control | Ballscrew + AC-servo controller (Linear motor optional) |
| Y-Axis Control | Dual driven ballscrew + AC-servo controller |
| Z-Axis Control | Ballscrew + AC-servo controller |
| X-Y Axis Resolution | 1 μm |
Board Handling
| Max PCB Size |
TR7500QE: 510 x 460 mm TR7500L QE: 660 x 610 mm TR7500QE DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | 3 kg |
| Top Clearance | 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm [5 mm optional] |
| Conveyor |
Inline Height: 880 – 920 mm * SMEMA Compatible |
Inspection Functions
| Component |
Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material Lifted Component |
| Solder |
Solder Fillet Height Solder Volume % Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination |
Dimensions
| WxDxH |
TR7500QE: 1100 x 1730 x 1750 mm TR7500L QE: 1250 x 1880 x 1750 mm TR7500QE DL: 1100 x 1830 x 1750 mm Note: not including signal tower, signal tower height 520 mm |
| Weight |
TR7500QE: 920 kg TR7500L QE: 1170 kg TR7500QE DL: 950 kg |
